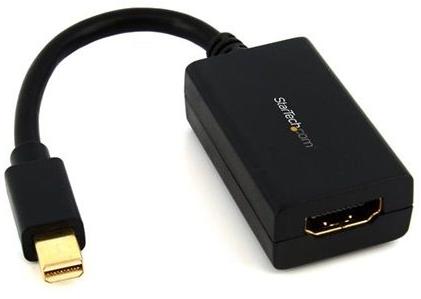

Startech Mini DisplayPort to HDMI Adapter with USB Audio (MDP2HDMIUSBA) Warranty Information Warranty 2 Years Hardware Adapter Style Adapter Audio Yes Converter Type Passive Industry Standards DisplayPort 1.1a HDMI 1.3b Output Signal HDMI Performance Audio Specifications Analog / Two channel stereo audio Maximum Digital Resolutions 1920x1200 / 1080p Wide Screen Supported Yes Connector(s) Connector A 1 - Mini-DisplayPort (20 pin) Male Connector B 1 - HDMI (19 pin) Female 1 - USB A (4 pin) Male Special Notes / Requirements System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) Indicators LED Indicators 1 - Red - Power Environmental Humidity 0~80% RH Operating Temperature 5°C to 35°C (41°F to 95°F) Storage Temperature 0°C to 70°C (32°F to 158°F) Physical Characteristics Color Black Enclosure Type Plastic Product Height 0.4 in [10 mm] Product Length 30 in [762 mm] Product Weight 3.2 oz [90 g] Product Width 2.2 in [56 mm] Packaging Information Shipping (Package) Weight 3.2 oz [90 g] What's in the Box Included in Package 1 - Mini DisplayPort and USB Audio to HDMI Adapter The MDP2HDMIUSBA Mini DisplayPort® with USB Audio to HDMI® Adapter offers a cost-effective HDMI with audio to Mini DisplayPort link, letting you connect an HDMI-capable HDTV to a device with a Mini DisplayPort output, while saving the expense of upgrading the TV for compatibility. Simply plug in the USB and Mini DisplayPort connectors to a PC or Mac® and the HDMI connector to an HDMI television/monitor. 2-Channel analog audio will pass through to the HDMI connection, delivering sound to the display side, with the convenience of one HDMI cable. MDP2HDMIUSBA is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. Compatible with Intel® Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Backed by a StarTech. com 2-year warranty and free lifetime technical support. The StarTech. com Advantage Mini DisplayPort® video and USB audio pass-through to one HDMI® cable allows you to take advantage of your Audio/Video devices with less clutter MDP2HDMIUSBA is ideal for PCs and Mac® computers equipped with Mini DisplayPort ports

Így is ismerheti: MDP 2 HDMI, MDP 2HDMI, MDP2 HDMI
